Principle:

Pump type:

Sewage pump discharge pump crushing pump garbage bin water pump well pump circulation pump HVAC condensate discharge pump submersible pump self-priming sewage pump fuel and oil transfer pump positive displacement pump submersible compressed air drive pump

Usage:

Underground fluid extraction and drainage in landfill leachate, methane gas condensate extraction, and contaminated site remediation projects

Features:

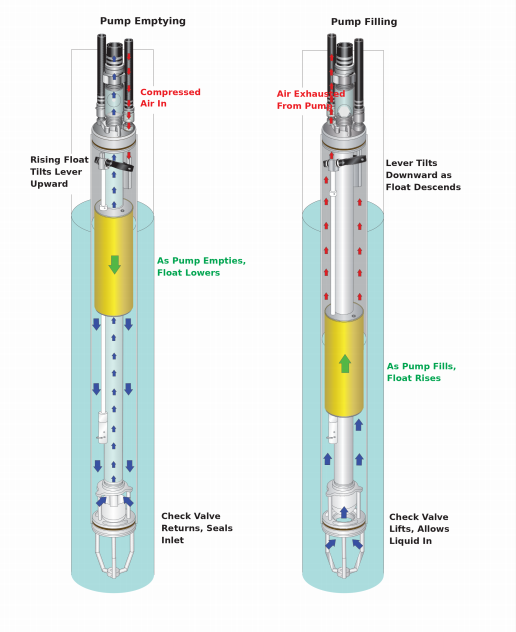

Automatic filling and emptying of pneumatic fluid extraction pump, pulse pumping, waterproof, explosion-proof, corrosion-resistant gas drive, no power

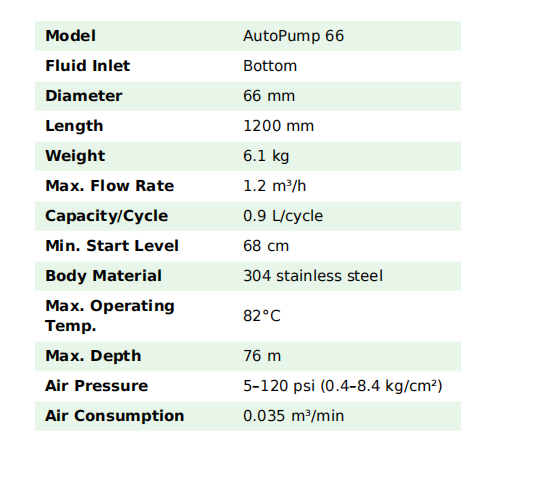

parameter

Copible situations:

Hydrocarbons, solvents, suspended solids, corrosive agents, extreme temperatures, viscous liquids, and Frequent start/stop cycles.

Extractable medium:

Waste liquids: landfill leachate, wastewater containing suspended solids, corrosive waste liquids with pH values ranging from 4 to 9 Oil types: diesel,gasoline,JP1-JP6 (jet fuel), # 2 heating oil (heating fuel), BTEX (aromatic hydrocarbon mixture), MTBE (methyl tert butyl ether), waste

Special fluids: high viscosity liquids, high-temperature fluids up to 82 ℃.

environment

Maximum temperature: 180 ° F (82 ° C)

PH range: 4-9

● Explosion proof and fireproof working conditions: pure pneumatic drive, no electrical components, with natural fire and explosion-proof capabilities, can be used in hazardous areas with combustible materials, and meets the safety requirements of the hydrocarbon industry;

● Deep well liquid level control: The maximum pumping depth can reach 76 meters, and it can work in underground water wells and vacuum wells. It can automatically start and stop through a float mechanism to maintain the target liquid level in the well without the need for additional electrical control;

● High load continuous working conditions: able to withstand frequent start stop cycles, wear-resistant and corrosion-resistant, suitable for long-term unmanned continuous pumping operations, with strong adaptability to harsh on-site environments
