- PRODUCT HIGHLIGHTS

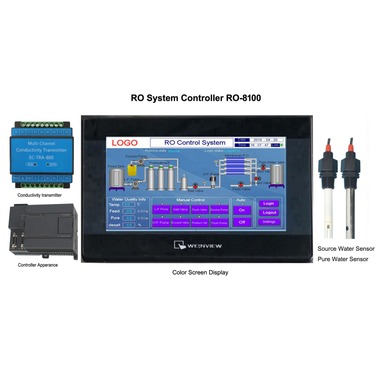

- RO-8100 color touch screen RO controller is for RO process control and online water quality monitoring. Two models available: RO-8100 single-stage & RO-8200 double-stage. Suitable for industrial pure water and seawater desalination RO systems.
- Display
- 7-inch touch screen as standard, 10-inch optional (800*480 resolution). Dynamic HMI covers conductivity monitoring, I/O status, flow chart, manual operation and parameter setup.
- Specifications (RO-8100)
- Measuring range: Source water conductivity 0~5000μS/cm, product water conductivity 0~200μS/cm, temperature 0~60℃. Supports high-pressure flush and low-pressure flush.
- Signal Control
- Collect signals of water tanks, pressure switches and pretreatment. Control raw water pump, high pressure pump, dosing pump, multiple valves and alarm relay.
- Safety & Function
- Multi-layer protection with traceable fault records, including water shortage, pump overload and pipeline pressure protection. Panel mount touch screen, DIN rail mounted controller. Standard RJ45 port with Modbus TCP for remote monitoring. Multi-language support: Chinese, English, Persian, Vietnamese, Polish, with password hierarchical authority management.
-
Item Specification Measurable Parameters Conductivity/TDS, PH, ORP, water temperature Display 3.5-digit high-definition LCD screen Power Supply Standard DC24V, DC12V optional Controller Working Temp 0~60℃ Sensor Interface Fit 3/4” BSP thread water electrodes, 5m signal cable as standard Control Output Multi-channel high/low limit alarm relays for pumps & valves Transmission Signal Isolated 4-20mA, RS485 Modbus (optional) Mounting Standard DIN rail snap-on installation -
Full-automatic RO Control Flow
- Water Quality Signal Collection
Water electrodes installed on raw water and product water pipelines continuously collect conductivity, PH and temperature signals and send data to RO-8100 main unit.
- Data Calculation & Calibration
The controller automatically completes temperature compensation calculation and displays real-time water quality data on screen.
- Automatic Logic Control
When water quality exceeds limits, relays activate pH dosing pumps automatically; abnormal pressure triggers high/low pressure shutdown protection; timed auto flushing for RO membranes is supported.
- Remote Data Upload
4-20mA / RS485 transmits real-time water quality and equipment operating status to central control system for remote monitoring.
- Closed-loop Water Production Cycle
The system continuously produces qualified pure water and runs in automatic circulation without constant manual supervision.
- Water Quality Signal Collection
- Application Scenarios

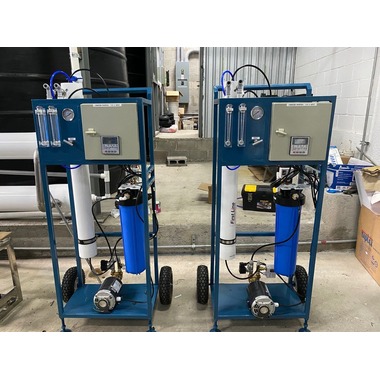

- Industrial reverse osmosis pure water equipment, commercial water purifiers, water reuse systems, seawater desalination equipment, electroplating wastewater treatment, food & beverage pure water production, laboratory ultra-pure water systems.
