- PRODUCT HIGHLIGHTS

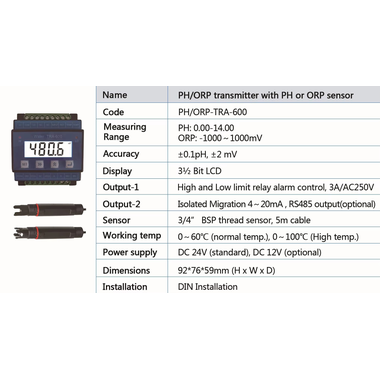

- TRA-600 series transmitter is a precision instrument designed for industrial online measurement, monitoring and control of Conductivity/TDS and PH/ORP parameters.
- Main Features
- Supports switchable display for Conductivity, TDS, mS, Temperature, or PH, ORP readings to meet diverse on-site inspection demands.
- Equipped with automatic or manual temperature compensation, compatible with NTC10K and PT1000 RTD temperature sensors, effectively eliminate temperature interference and ensure accurate measuring results.
- Built-in high and low limit relay alarm & control output, realizing automatic interlock control such as dosing, draining and alarming in water treatment systems.
- Adopts isolated 4-20mA current signal output, effectively avoid signal interference and guarantee stable long-distance signal transmission.Optional Modbus RS485 communication output, convenient for connection with PLC and industrial control systems to achieve remote data access and system integration.
- Comes with standard buffer solution calibration and constant value input calibration function, support regular on-site calibration to keep measuring accuracy.
- Integrated MOV surge suppression and AC input fuse protection, prevent damage caused by surge and overload current.
- Provides ESD overvoltage protection to defend equipment from electrostatic impact under complex industrial environments.

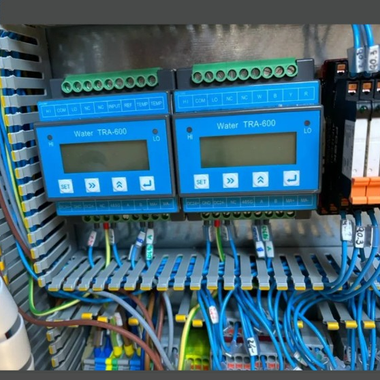

- Simple installation and user-friendly operation, featuring long service life and low maintenance workload to reduce opera
- Applications
- Reverse osmosis (RO) pure water systems, industrial process water quality control, seawater desalination, industrial wastewater treatment, electroplating wastewater, swimming pool water quality monitoring.
-
- Process Overview

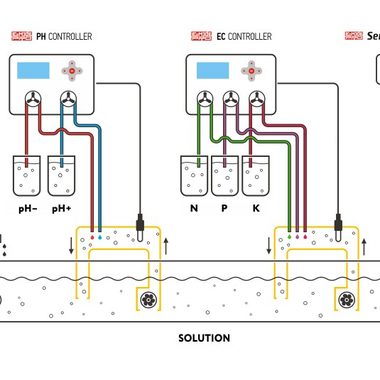

- Raw water flows into the nutrient solution tank. The immersed PH/ORP electrode collects real-time water quality signals and sends them to the PH/ORP-TRA-600 transmitter. The device calculates accurate pH values with built-in temperature compensation. Once readings go beyond preset thresholds, relays activate dosing pumps to add pH regulators. Real-time data is uploaded to the main control system via isolated 4-20mA signal or RS485 communication. The balanced nutrient solution circulates to planting beds for crop irrigation, forming a fully automatic closed-loop water quality control system.
-
